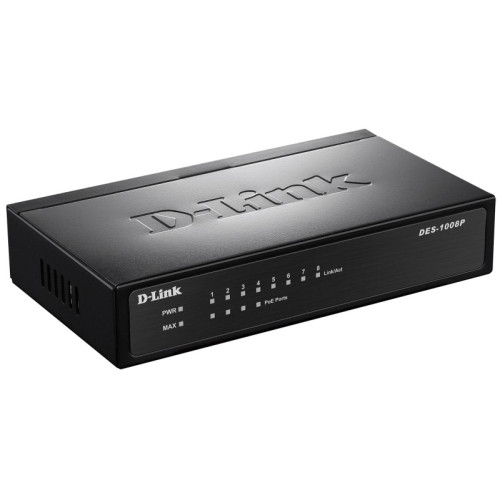

D-Link DES-1008P/C1a 8-Port 10/100Mbps 4 Poe Portlu Yönetilemez Poe Switch

Genel Özellikler

Standards

• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)

• ANSI/IEEE 802.3 NWay auto-negotiation

• IEEE 802.3x flow control

• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

Switching Fabric

• 1.6 Gbps switching fabric

Data Transfer Rates

• Ethernet

  • 10 Mbps (half duplex)

  • 20 Mbps (full duplex)

• Fast Ethernet

  • 100 Mbps (half duplex)

  • 200 Mbps (full duplex)

Media Interface Exchange

• Auto MDI/MDIX adjustment for all ports

Network Cables

• 10BASE-T:

  • UTP CAT 3/4/5/5e (100 m max.)

  • EIA/TIA-586 100-ohm STP (100 m max.)

• 100BASE-TX

  • UTP CAT 5/5e (100 m max.)

  • EIA/TIA-568 100-ohm STP (100 m max.)

LED Indicators

• Per unit: Power/ PoE Max

• Per port: Activity/ Link and Speed

• Per port: Power / Status

Transmission Method

• Store-and-forward

MAC Address Table

• 2K entries per device

Packet Filtering/Forwarding Rates

• Ethernet: 14,880 pps per port

• Fast Ethernet: 148,800 pps per port

RAM Buffer

• 96 KB per device

Physical

Dimensions

• 5.5” x 3.0” x 1.06” (140 mm x 77 mm x 27 mm)

DC Input

• External 51 V / 1.25 A power adapter

Power Consumption

• 62 Watts maximum

• PoE up to 15.4 Watts per port (ports 1-4 only)

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)

• Storage: -10 to 70 °C (14 to 158 °F)

Humidity

• Operating: 5% to 90% RH non-condensing

Certifications

CE / KCC / C-Tick
