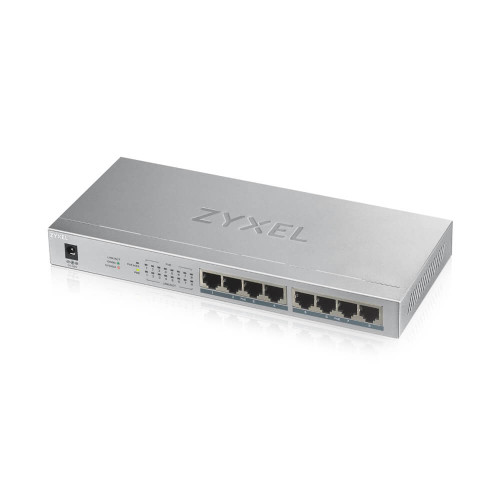

ZyXEL GS1008-HP, 8 Port Gigabit PoE+ 8 x PoE, 60 Watt Masaüstü Switch

Standard

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3 Nway auto-negotiation
• IEEE 802.3x full duplex operation and flow control
• IEEE 802.3az Energy Efficient Ethernet

Performance

• Data transfer rate (half duplex/full duplex):
  • Ethernet: 10/20 Mbps
  • Fast Ethernet: 100/200 Mbps
  • Gigabit Ethernet: 1000/2000 Mbps
• MAC address table: 4 K
• Memory buffer: 192 KB
• Switching fabric (non-blocking): 16 Gbps

Features

• Compatible With IEEE 802.3af and 802.at Compliant PDs
• Auto-MDI/MDIX in all ports
• EEE802.3x Flow Control
• IEEE 802.1p QoS
• Jumbo frame support up to 9 KB

Interface

• 8 RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support

PoE Ports (RJ45)

• Standard: 802.3af and 802.3at compliant
• 8 PoE+ ports, up to 30W per port
• Total PoE Budget : 60W

LED Indicator

• PWR: Power
• PoE MAX:
  • Amber: PoE power output over 50W (total budget 60W)
• Per port: Link/Activity
  • Amber: 10/100 Mbps
  • Green: 1000 Mbps
• Per port : PoE+
  • Green: PoE supported

Power Supply

• AC-to-DC external power adapter
• Input: 100-240 V AC
• Output: 55V DC/1.3A
